EVX1272

發(fā)布時間：2020-12-03 11:16  瀏覽：392

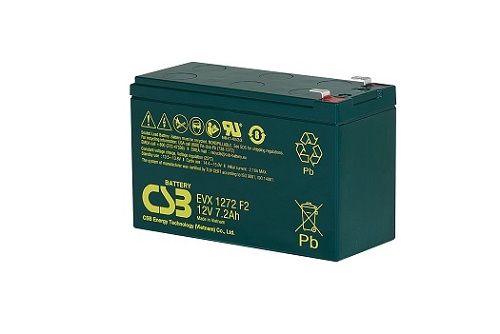

EVX1272

12 V 7.2Ah EVX 1272 is designed specially for electric vehicles, such as electric golf cart, electric wheelchair, mower, dust collector etc. It has high cycling life, high efficiency and long service life.

規(guī)格書

局數(shù)

6

電壓值

12 V

安培數(shù)

7.2 Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)

重量(kg)

Approx. 2.55kg. (5.62 lbs.)

最大放電電流5秒(A)

100A/130A (5 sec)

內阻(mΩ)

Approx. 23.9 mΩ

溫度工作范圍

Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F)

一般使用溫度工作范圍

25°C ± 3°C (77°F ± 5°F)

浮充使用充電條件

13.5 to 13.8 VDC/unit Average at 25°C (77°F)

建議充電最大電流

2.16A

均充使用充電條件

14.4 to 15.0 VDC/unit Average at 25°C (77°F)

自放電	It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃

端子	F1/F2-Faston Tab187/250

電槽組材質

ABS(UL94-HB)

---
